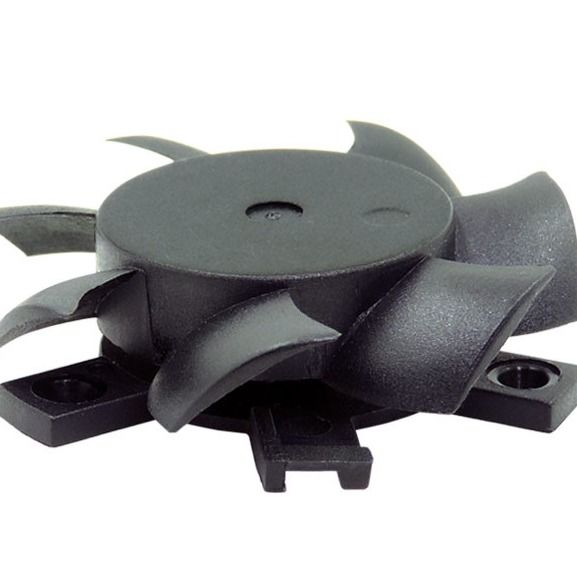

Practical Stable Frameless PC Fans , 40x40x10mm Plastic GPU Cooler Fan
  • Practical Stable Frameless PC Fans , 40x40x10mm Plastic GPU Cooler Fan
  • Practical Stable Frameless PC Fans , 40x40x10mm Plastic GPU Cooler Fan
  • Practical Stable Frameless PC Fans , 40x40x10mm Plastic GPU Cooler Fan
Practical Stable Frameless PC Fans , 40x40x10mm Plastic GPU Cooler Fan

Practical Stable Frameless PC Fans , 40x40x10mm Plastic GPU Cooler Fan

Place of Origin Guangdong, China
Brand Name Aidecoolr
Model Number CC4010(frameless)
Product Details
Type:
Axial Flow Fan
Applicable Industries:
Other, Graphic Card Cooling
Customized Support:
OEM, ODM
Electric Current Type:
DC
Mounting:
Mounting By Screws
Blade Material:
Plastic
Voltage:
5V,12V,24V
Warranty:
1 Year
After-sales Service Provided:
Free Spare Parts
Bearing Type:
Sleeve Or 2-ball Or Hydraulic
Size:
37.5 X10mm
Noise Level:
21-28.5dBA
Port:
Shenzhen,Hongkong
High Light:

Practical Frameless PC Fans

,

Stable Frameless PC Fans

,

Plastic GPU Cooler Fan

Product Description
Aidecoolr 40x40x10mm frameless fan,D37.5x10mm,suitable for GPU cooler,Auto light

Dimensions:

Based on the information provided by the link you shared, the product appears to be a frameless fan with dimensions of 40x40x10mm, designed for use in GPU coolers and automotive lighting applications.

The frameless design can help reduce noise and increase airflow efficiency, making it ideal for use in applications where noise can be an issue. The product is made from durable materials and is designed to be compact and easy to install.



Overall, if you are in need of a frameless fan for your GPU cooler or automotive lighting application to help improve its cooling performance or airflow, this product might be worth considering. However, it's important to do your own research and make sure that this product is compatible with your specific hardware and voltage requirements before making a purchase.





Parameters:

Model earing
Type		 Fan Type Version Rated
Voltage		 current Speed Air Flow static Pressure Noise Level
vDc Amp RPM CFM MM-Ho dBA
cC4010LO5s Sleeve Frameless -A 5V 0.08 4.000±10% 2.90 1.50 21.0
cC4010LO5D 2-Ball
cC4010LO5SH Hydraulic
cC4010MO5s Sleeve Frameless -A 5v 0.12 5,000±10% 3.90 2.20 25.0
cC4010M05D 2-Ball
cC4010M05SH Hydraulic
CC4010H05s Sleeve Frameless   5V 0.22 6,000±10% 5.10 2.80
cC4010HO5D 2-Ball
cC4010HO5SH Hydraulic
cC4010L12S Sleeve Frameless -A   0.03 4,000±10% 2.90 1.50
cC4010L12D 2-Ball
cC4010L12SH Hydraulic
cC4010M12S Sleeve Frameless   12V 0.05 5,000+10% 3.90 2.20
cC4010M12D 2-Ball
cC4010M12SH Hydraulic
cC4010H12s Sleeve Frameless   12v 0.08 6,000±10% 5.10 2.80 28.5
cC4010H12D 2-Ball
cC4010H12SH Hydraulic



Parts Specs:

   P&Q Curve


Bearing type:Sleeve,2-Ball,Hydraulic


Material:
Frame & Impeler:PBT

Lead wire:
UL2468 AWG #26 or equivalent
Red Wire Positive (+)
Black Wire Negative (-)

FG,PWM,RD,Protection functions are optional



5V,12V,24V are available


   Practical Stable Frameless PC Fans , 40x40x10mm Plastic GPU Cooler Fan 0
Practical Stable Frameless PC Fans , 40x40x10mm Plastic GPU Cooler Fan 1





Electrical  Specifications:

 Insulation Resistance  10MΩ/between unshackled wire and frame at 500VDC/min
 Dielectric Strength  5Ma Max./Measured between lead wire(+)and frame at 500VAC/min
 Rotating Direction  Anti-Clockwise
 Polarity Protect  Circuit is protected when VCC&GND are exchanged
 No. of pole  4Poles





Environmental Specifications

 Operating Temp  Range  Temperature:-10℃~+70℃
 Humidity:35%~85%RH
 Store Temperature  Temperature:-40℃~+70℃
 Humidity:35%~85%RH
 Thermal Shock  Standard:MIL-STD 202F Method 107D,Condition D
 Insulation Shock  UL:Class A





Workshop






Testing Equipments





Certifications

Practical Stable Frameless PC Fans , 40x40x10mm Plastic GPU Cooler Fan 2

Packaging & Shipping
FCL Shipment   LCL Shipment
Practical Stable Frameless PC Fans , 40x40x10mm Plastic GPU Cooler Fan 3   Practical Stable Frameless PC Fans , 40x40x10mm Plastic GPU Cooler Fan 4





 Air shipment:

Practical Stable Frameless PC Fans , 40x40x10mm Plastic GPU Cooler Fan 5



FAQ

 Lifetime:

 Bearing type  Lifetime
 Sleeve  30,000 hours
 Hydraulic  40,000 hours
 2-Ball  60,000 hours
