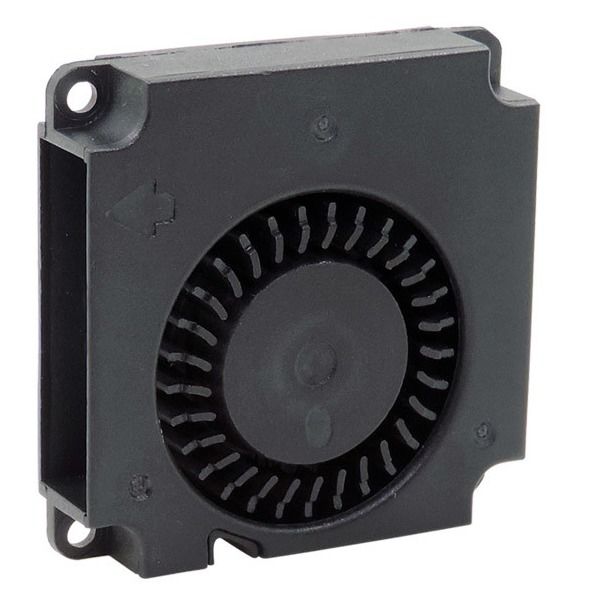

40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger
  • 40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger
  • 40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger
  • 40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger
  • 40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger

40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger

Place of Origin Guangdong, China
Brand Name Aidecoolr
Model Number BF4010
Product Details
Type:
Centrifugal Fan
Applicable Industries:
Ventilation, Charger
Customized Support:
OEM, ODM
Electric Current Type:
DC
Blade Material:
Plastic
Mounting:
Mounting By Screws
Voltage:
5V/12V/24V
Warranty:
1 Year
After-sales Service Provided:
Free Spare Parts
Size:
40x40x10mm
Bearing Type:
Sleeve Or 2-Ball
Port:
Shenzhen,Hongkong
High Light:

40mm Cooling Blower Fan

,

10mm Cooling Blower Fan

,

Automotive Blower Fan 4010

Product Description



40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger

Based on the information provided by the link you shared, the product appears to be a small blower fan with dimensions of 50x50x15mm, designed for use in bidets, air purifiers, and 3D printers.



The compact size and efficient design make it ideal for use in applications where space is limited and noise reduction is important.



The product is made from durable materials and is designed to be easy to install.



Overall, if you are in need of a small blower fan to help improve the cooling performance or airflow in your bidet, air purifier, or 3D printer, this product might be worth considering.



However, it's important to do your own research and make sure that this product is compatible with your specific hardware and voltage requirements before making a purchase.



Model Bearing
Type
Version Rated
Voltage
current lnput Power Speed Air Flow Static Pressure Noise Level
vDC Amp Watt RPM CFM MM-Ho dBA
BF4010LO5S Sleeve -A sv 0.07 0.35 5.500±10% 1.60 3.10 24.0
BF4010LO5D 2-Ball
BF4010M05S Sleeve -A 5V 0.10 0.50 6,500±10% 1.92 4.50 27.0
BF4010M05D 2-Ball
BF4010HO5S Sleeve -A 5v 0.14 0.70 7,500±10%   5.70 30.0
BF4010H05D 2-Ball
BF4010L12S Sleeve -A 12V 0.03 0.36 5,500±10% 1.60 3.10
BF4010L12D 2-Ball
BF4010M12S Sleeve -A 12V 0.05 0.60 6.500±10% 1.92 4.50
BF4010M12D 2-Ball
BF4010H12S Sleeve -A 12V 0.06 0.72 7,500±10%   5.70 30.0
BF4010H12D 2Ball



Parameters:





Parts Specs:

  P&Q Curve


Bearing type:Sleeve,2-Ball


Material:
Frame & Impeler:PBT

Lead wire:
UL2468 AWG #26 or equivalent
Red Wire Positive (+)
Black Wire Negative (-)

FG,PWM,RD,Protection functions are optional



5V,12V,24V are available


  40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger 0





Electrical  Specifications:

 Insulation Resistance  10MΩ/between unshackled wire and frame at 500VDC/min
 Dielectric Strength  5Ma Max./Measured between lead wire(+)and frame at 500VAC/min
 Rotating Direction  Anti-Clockwise
 Polarity Protect  Circuit is protected when VCC&GND are exchanged
 No. of pole  4Poles





Environmental Specifications

 Operating Temp  Range  Temperature:-10℃~+70℃
 Humidity:35%~85%RH
 Store Temperature  Temperature:-40℃~+70℃
 Humidity:35%~85%RH
 Thermal Shock  Standard:MIL-STD 202F Method 107D,Condition D
 Insulation Shock  UL:Class A

40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger 1





Packaging & Shipping
FCL Shipment   LCL Shipment
40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger 2   40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger 3





 Air shipment:

40x40x10mm Cooling Blower Fan 4010 For Automotive Wireless Charger 4

FAQ

 Lifetime:

 Bearing type  Lifetime
 Sleeve  30,000 hours
 Hydraulic  40,000 hours
 2-Ball  60,000 hours
